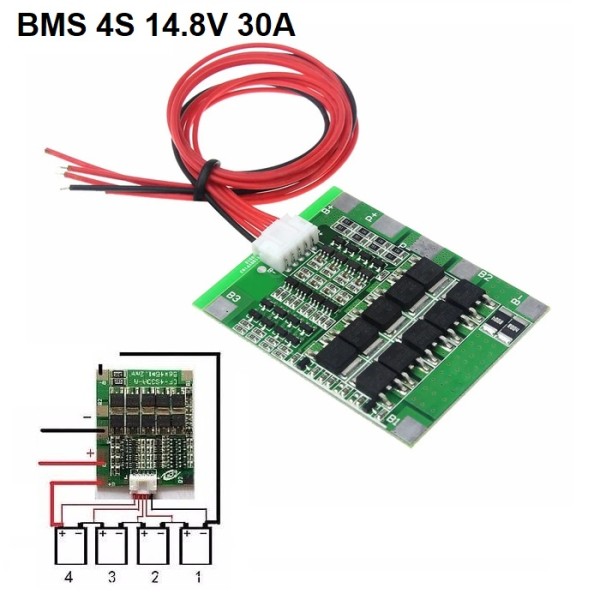

BMS PCM PCB 4S 30A Li-Ion Charging and Protection Module
Electronic system protecting 4S 30A Standard 14.8V BMS PCM PCB battery against discharging and at the same time a charger for these batteries. It allows you to build a safe battery pack that does not need to be charged with special Li-ion chargers.
The 2 in 1 module will keep the cells in the best conditions, preventing them from overcharging and over-discharging. One module replaces the charger and the security module here.
Product features:
Short circuit protection.
Overcharge protection.
Over-discharge protection.
Overcurrent protection.
They can be used for various 3.7V lithium cells.
Compact dimensions and low weight
Ensure safe use of the battery
Technical data:
Overcharge voltage detection range: 4.28 + 0.05V
Discharge voltage detection range: 2.55 ± 0.08

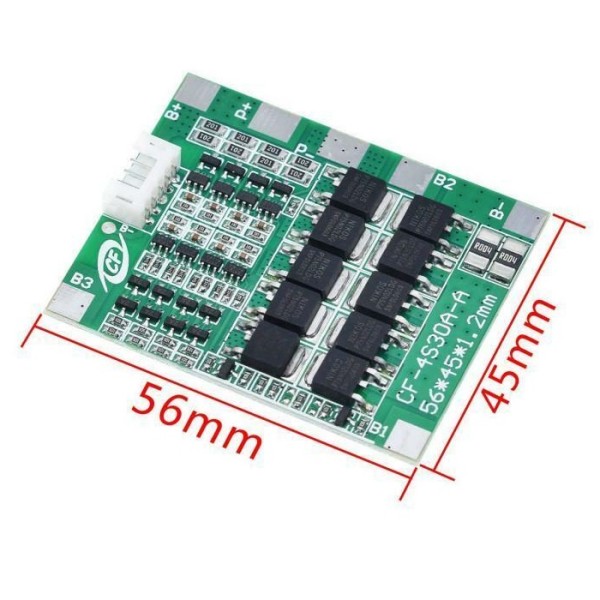

Dimensions: 56x45x4mm
Charging voltage: 14.8V
Discharge current: 30A
(price per piece)
