Digital Display Spot Welder Welding Machine PCB Circuit Board-DIY Set

Nwe 99 Gears 8V-24V Spot Welder Kit Digital Power Adjustable Spot Welding Pen Control Board Nickel Sheet For 18650 Lithium Battery.

This control board of spots welding machine is high power output design, 99 gears of output power adjustable, more accurate welding, suitable for continuously welding thousands of points on nickel/nickel-plate sheet. With the 3 bit digital-tube real-time gear display function, which not only can display the current gear, but also can detects the battery voltage. Three working modes design, you can switch between general power mode, strengthen power mode and superstrong power mode. It supports 0.1-0.2mm nickel welding sheets and the welding points are more solid and beautiful.

Features:

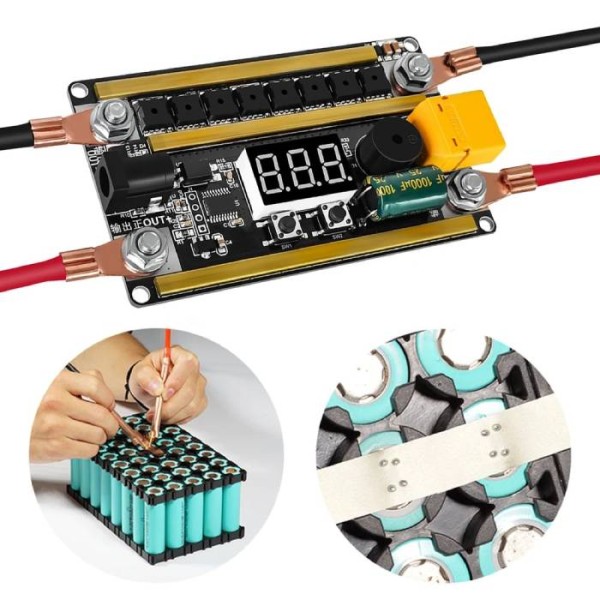

The welding process is based on the principle of high current and high temperature, rapidly melting part of the nickel sheet, and cooling.
High speed singlechip design, intelligent program, real-time display of battery voltage and high visibility of spots welding strength.

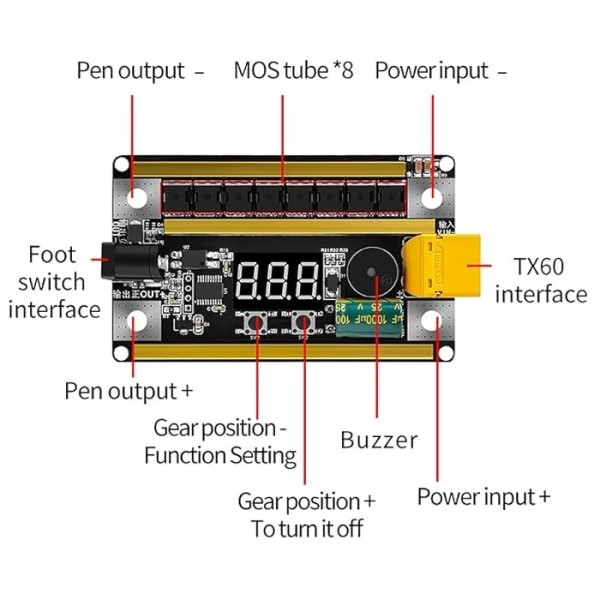

Adopts 8pcs MOS tubes, the peaks current is up to 2400A, support 0.1-0.2mm nickel welding sheets and the welding points are more solid and beautiful.
High-precise power output design with 99 gears output power is adjustable for more accurate welding, and is suitable for continuous welding of thousands of points on nickel sheet and nickel-plate sheet.
With the 3 bit digital-tube real-time gear display function, which not only can display the current gear, but also can detects the battery voltage, and enhances the pleasure of the spots welding.
When in standby, the digital tube will alternately display the gear and the supplying voltage once every second. When the display reads: d + two digits, means it is under gear display; when the display reads: three digits, such as 12.6, means that the voltage of the power supplys is: 12.6V voltage.
Three working modes design, you can switch between general power mode, strengthen power mode and superstrong power mode.
Two spots welding delay times are adjustable design, you can set 0s or 1s delay time according to the working demands.
It is both spots-welder and voltmeter, built-in 12-bit high-precise ADC, the voltage measurement accuracy is up to 0.01 voltage, with 8-24V test ranges, automatic voltage display when connected to the power supplys.

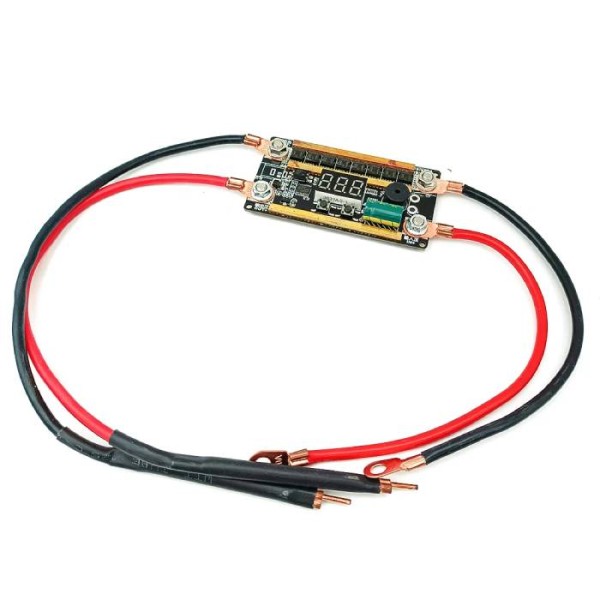

Flexible spots welding pen, 12AWG wire consists of multiple strands of high-temperature wire with high torsional resistance and more sensitive operation.
Thick pure copper welding pen design with alumina copper spots welding needles to ensure high current passing capacity and durability.
The cold pressing process can make large contact areas with pure copper joints to reduce internal resistance.

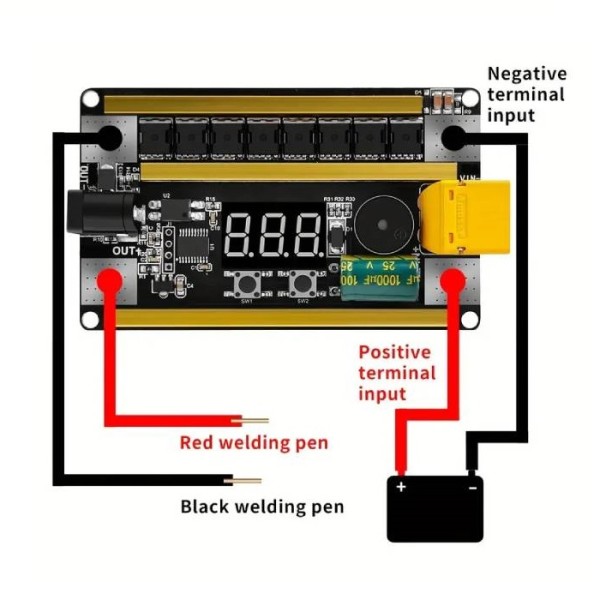

You can choose one of the following sources as your working power source:
1. Leadacid Battery: 2*20Ah electromobile battery, 36-405H new car starts battery.
2. Model Battery: 3S 4000mah 35C, 3S 5000mah 25C, 3S 8000mah 20C.
3. Car Starting Supplies: 11.5-14.8V 36-60AH, the internal resistance should > 2.5 milliohm and <7 milliohm.
4. Self-assembling Battery: 11.5-14.8V, total internal resistance <7 milliohm.

Specifications:

Name: Spots Welding Machine Set
Material: printed circuit board
Working voltage: 8-24V
Working current: <20mAh
Peaks welding current: 2400A max
Standby power consumption: <0.5mAh
Welding thickness: 0.1-0.2mm
Limit temperature: 175 °C
Item Size: 89*54mm/3.50 * 2.13in
Item weight: 100g / 3.53ounce
Package size: 150*120*20mm/5.91*4.72 * 0.79in
Package weight: 155g / 5.47ounce

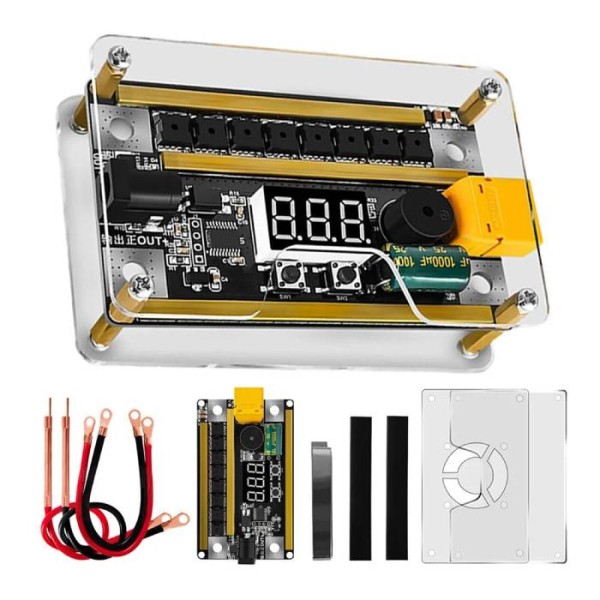

Packing List:
1 - Control board
2 - Input cable
1 - Pair of soldering pens
2 - Heat Shrink Tubing
4 - Screw kit

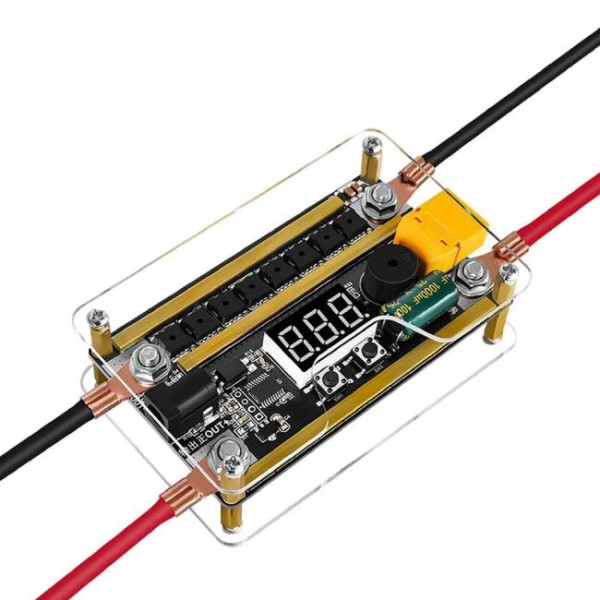

2 - Acrylic protection plate

NOTE:
This product is a DIY spot welder circuit board, requires some knowledge of circuitry, external power supply, connecting cable

Digital Display Spot Welder Welding Machine PCB Circuit Board-DIY Set

  • Product Code: 12944
  • Availability: In Stock
  • 38.50€
