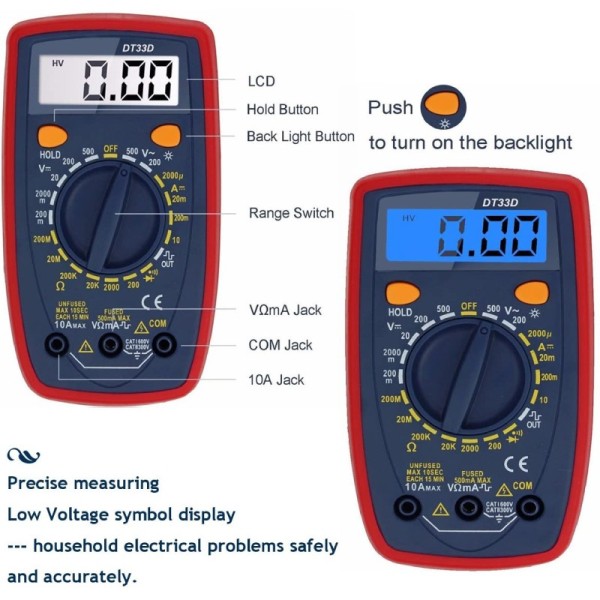

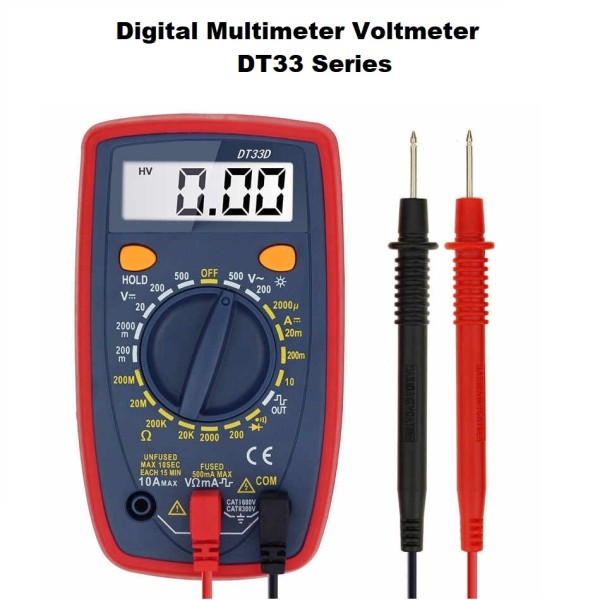

Digital Multimeter - Voltmeter DT33 series
The DT33 series digital multimeter is a practical tool for electricians, hobbyists, and general household use.It is easy to operate and features many different functions for measuring current, voltage, and resistance, as well as continuity, transistor, and diode testing.
It can be used to diagnose, assemble, and repair circuitry and wiring. Other features include a low battery indicator, continuity buzzer, and overload protection.
Description:
LCD size: 49*17mm
- Sampling speed: 2 times per second.
- Over-load indication: “1” is displayed
-Operating Environment: 0 - 40, at < 80%RH
-Storage Environment: -10-50,at < 85%RH
-Power: 9V NEDA 1604 or 6F22
-Product size: 130*73*37mm
-Product net weight: 145g (including battery)
Measurement ranges & Accuracy
-DC Voltage:
200mV ±(0.5% of rdg+3D)
2000mV/20V/200V ±(0.8% of rdg+5D)
500V ±(1% of rdg+5D)
-AC Voltage:
200V/500V ±(2% of rdg+10D)
-DC Current:
200μA/2000μA/20mA ±(1.8% of rdg+2D)
200mA ±(2% of rdg+2D)
10A ±(2% of rdg+10D)
-Resistance:
200Ω ±(1% of rdg+10D)
2000Ω/20KΩ/200KΩ ±(1% of rdg+4D)
20MΩ ±(1% of rdg+10D)
200MΩ ±[5%*(rdg-10)+10dgts]

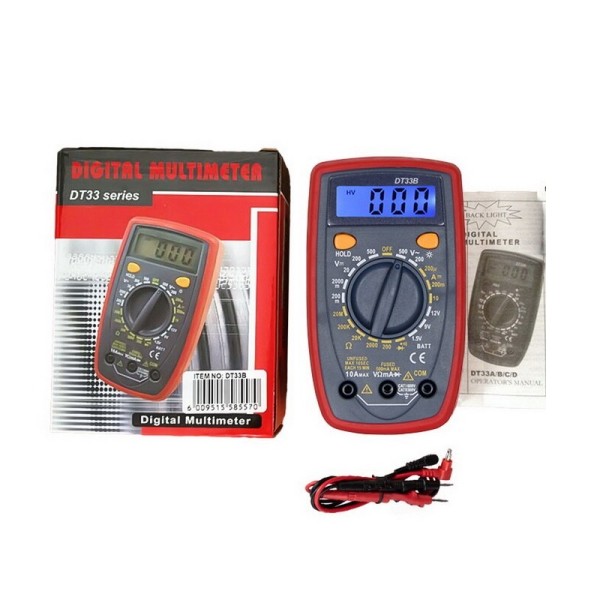

Kit include:
1x digital multimete
2 x pcs Test Leads Cable
