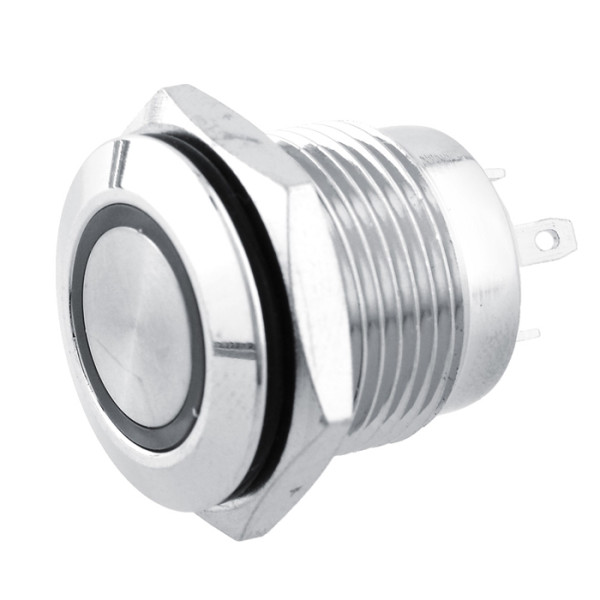

LED Start Push Button Switch 16mm 12V
This button is a momentary push button, when you press it the 'normal-open' contact shorts to the common contact.When you release it, the contacts open up again.
The switch and LED are separated, so you could wire it to turn on when pressed or vice versa or whatever you wish!
Specifications:
Switch type vandal resistant
Stable positions number 1-position
Contacts configuration SPST-NO
DC contacts rating (at resistance load) 2 A / 36 VDC
Sealing IP65
Switching method (1NO)
Backlight colour Red
Leads for soldering
Operating temperature -20...55°C
Electrical life 200000cycles
Max. contact resistance: 50mΩ
Switching torque 4N
Mechanical durability 1000000cycles
Illumination LED 12V AC/DC, ring light
Mounting hole diameter Ø16mm
Body colour silver
Button shape convex
Test voltage 2kV
Contact material silver alloy
