Mosfet Transistor N Channel IRLB3034PBF-15K Ohm 1/4W Resistor
The IRLB3034PBF from International Rectifier is 40V single N channel HEXFET power MOSFET i n TO-220AB package.This MOSFET features improved gate, avalanche and dynamic dV/dt ruggedness, fast switching.
Applicable at high efficiency synchronous rectification in SMPS, uninterruptible power supply, high speed power switching, DC motor drive, hard switched and high frequency circuits.
Enhanced body diode dV/dt and dI/dt capability
Fully characterized capacitance and avalanche SOA
Very low Rds(on) at 4.5V Vgs
Superior RxQ at 4.5V VGS
Optimized for logic level drive
Drain to source voltage (Vds) of 40V
Gate to source voltage of ±20V
On resistance Rds(on) of 1.4mohm at Vgs 10V
Power dissipation Pd of 375W at 25°C
Operating junction temperature range from -55°C to 175°C
15K Ohm 1/4W 1% Metal Film Resistor
Specifications
Power : 0.25 Watts
Resistance : 15K Ohms
Tolerance ±1%
Low noise, Low voltage coefficient
Resistor Type : Metal Film
Lead Free
Applications
Power Management; Industrial; Portable Devices; Consumer Electronics

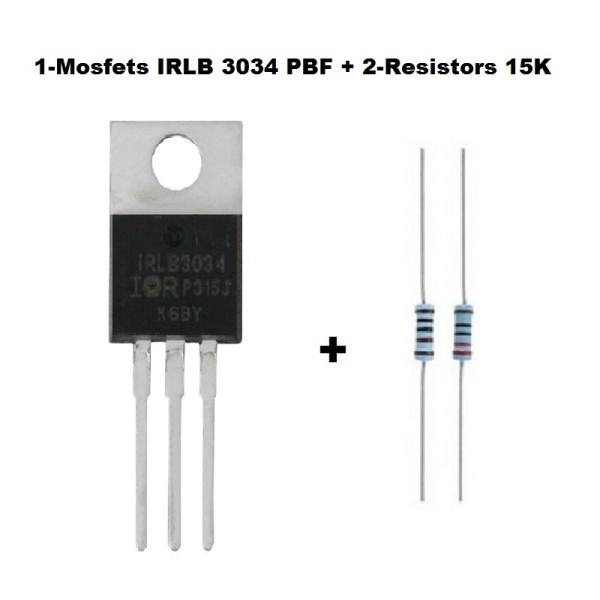

Quantity:1Pcs Mosfet IRLB3034PBF + 2Pcs 15K Ohm Resistor
