Description

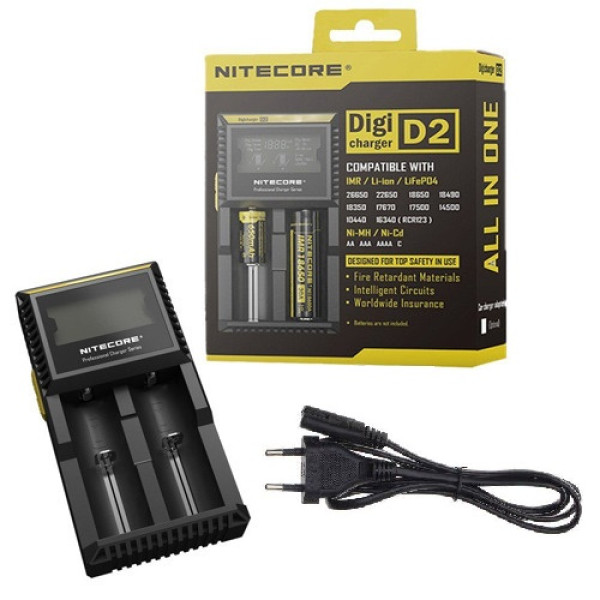

Universal Charger Nitecore Digicharger D2

Universal digital charger Digicharger D2 is capable to charge virtually all possible " cylindrical " batteries , including formats such as IMR and LiFePO4. The device is equipped with an LCD display , which shows the charging status of each channel , information on voltage, current and charging time.

Key features and innovations charger Digicharger D2:

Simultaneous charging of 2 batteries
Each slot is charged and controlled independently from each other,
D2 compatible and able to determine the following types of batteries : Li-ion ( 26650 , 22650 , 18650 , 17670.18490 , 17500, 18350 , 16340 (RCR123), 14500 , 10440 ), Ni-MH and Ni-Cd (AA, AAA, AAAA , C),
Opportunity charging standard IMR,
Built-in LCD screen displays charge status and parameters ,
Two conveniently located side buttons make it easy to select a specific type of battery or set the desired charging parameters ,
Intelligent processor determines the type and status of the battery before automatic charging (CC, CV, dV / dt),
Automatically detects the battery level and selects the required voltage and charging mode (except for LiFePO4, which require manual selection )
Compatible with LiFePO4,
Compatible with battery capacity is low ,
Automatic stop charging when battery is fully charged ,
Protection against overcharging
The temperature control unit to prevent overheating ,
Made of durable material ABS ( flame retardant and resistant to fire )
Protect batteries from improper installation ( reverse polarity )
Housing is designed with the possibility of optimum heat dissipation ,
Certified by RoHS, CE, FCC and CEC,
Insured worldwide by Ping An Insurance (Group) Company of China, Ltd.

Main parameters and characteristics charger Digicharger D2:
Brand : Nitecore
Model : Digicharger D2
Dimensions: 143mm x 74mm x 36mm
Weight: 168g
Charging indication for each channel: displayed on the LCD
Two separate independent channel for charging.
Automatic shut-off : after a full charge the battery of the appropriate type .
Input voltage:
AC 100V ~ 240V 50 ~ 60Hz - conventional electric network 220/110V
DC 12V - using the car cigarette lighter (or other power source 12V)
Output voltage:
4.2V ± 1 % / 3.7V ± 1 % / 1.48V ± 1%
Output current : 500mA x 2
Supported batteries:
Li-Ion / IMR / LiFePO4:
26650
22650
18650
10440
14500
16340
CR123A
17670
17500
18490
18350
Ni-MH / Ni-Cd:
AA (R6)
AAA (R03)
AAAA
C (R14)
